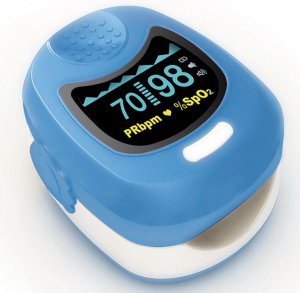

This child-friendly pulse oximeter is a compact, light weighted device, designed specially for little ones for on the go spot checking of vital signs (blood saturation & pulse rate), in a simple, unharmful procedure.
By simply clipping the device to the precious sweetheart`s finger, SpO2 and pulse reading be obtained within seconds. The Pulse Oximeter answers a wide range of needs and serves various roles in the medical and recreational fields.
Technical Parameters
■ Display Mode: Dual color OlED Display,the display direction be changed SpO2,Pulse rate,Pulse bar,waveform(4 display modes)
■ SpO2 measuring range: 0%-100%
■ Accuracy: When the SpO2 measuring range is : 70% to 100% ,the permission of absolute error is (±) 2%; below 70% unspecified
■ Resolution: SpO2: 1% Pulse Rate: 1bpm
■ Pulse Ratio: 30-250 BPM
■ Measurement Performance in Weak Filling Condition: SpO2 and pulse rate be shown correctly when pulse filling ratio is 0.4%, SpO2 error is (+, -)4%, pulse rate error is ±2bpm Or 2%(select larger).
■ Resistance to surrounding light:The device between the value measured in the condition of man-made light and that of darkroom is less than (±)1%
■ Alarm function:Detected data going beyond limit alarm (when the SpO2 is below 90%,or the pulse rate is not between 50bpm and 120bpm, the alarm occurs);Low power alarm
■ Safety Type:Interior Battery,BF Type
■ Storage Environment:Temperature:-40ºC~+60ºC;Relative humidity:5%-95%;
■ Operative Environment:Temperature: 10ºC~40ºC; ;Relative humidity:30%-75%;
■ Power supply requirement:3.6V DC~4.2VDC
■ Battery requirement:3.6V rechargeable buttony lithium battery (Battery included)
■ Dimensions:46(L) × 40(W) ×29 (H) mm
■ Weight:About 35g (with 3.6V rechargeable buttony lithium battery )
